Wet film humidifier using the water evaporation, the water was constantly sent to the upper part of the wet film through the water pump and the dispenser.

Under the action of gravity, the water goes through the wet film back to the main tank to form a circulating process. When the air goes through the wet film with its full contact, the dust and other particulate matters are filtered. Thus, the air is purified, and the humidity increases. In this way, it achieves the purpose of humidification, purification, and dust-suppression.

Clean tap water or chilled water through a water inlet pipe to the wet film humidifier lower circulation water tank, the water enters the water tank is composed of float valve and liquid level switch to control. The water in the water tank by a water pump to wet film on top of the water distributor, through wet membrane water distributor will be uniform water distribution, water under the action of gravity along the wet membrane surface flow down the wet film, wetting, penetrating, when the air through the wet film during its increased humidity, temperature drop, another part without evaporation water from the humidifier bottom back to the water tank; the water in the water tank through a circulating water pump using repeated cycles, the wet film humidification of air. In this way, to achieve the purpose of saving water. When the circulating water level in the water tank of water drop, switch to open, to ensure water tank, the water level of the water tank is maintained at a set height range; when the circulation of the water level in the tank falls to a certain height, the water tank of the low water level switch, ensure the circulating pump in the absence of water stop. In the process of temperature and membrane water evaporated part, but does not consume additional energy.

24KG/H industrial Wet Membrane Humidifier Wet membrane industry Air humidifier Industrial Humidifier

Cabinet Style Wet-membrane Humidifier Main Features

• Humidification clean without whitening phenomenon; inner main tank with circulating water detection and water storage memory; timing automatic water changing.
• Can be remotely controlled
• Power saving, power consumption is only 20% of the electrode humidifier
• Free from air conditioning system operation restrictions, automatically humidification according to indoor conditions.
• When the indoor temperature is high, Has a good cooling effect.
• Humidification saturation rate up to 90%

6L/H industrial Wet Membrane Humidifier Wet flim air humidifier for commercial & industrial USE

Air conditioning humidifier with universal wheel, 6 to 30kgs industrial Industrial Wet Membrane Humidifier

Cabinet Style Wet-membrane Humidifier Technical Parameters

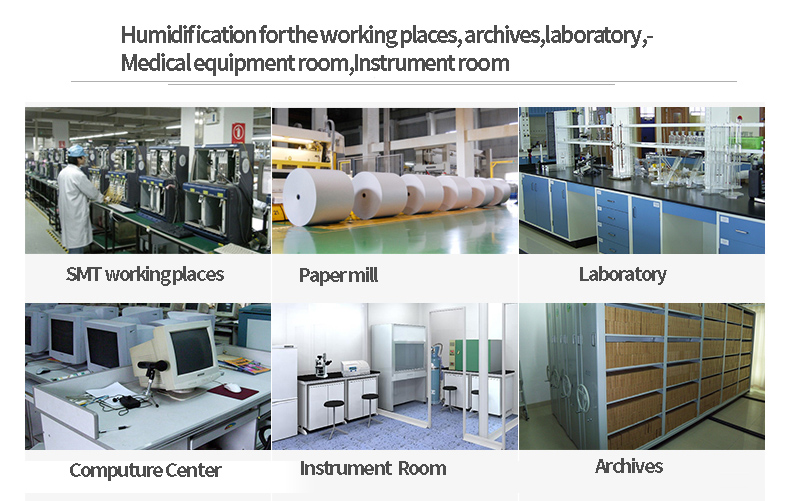

Cabinet Style Wet-membrane Humidifier Main Applications:

• Semiconductor plant, electronics factory, communications room, computer room, SMT workshop
• Museums, archives, commercial buildings, theaters, conference rooms

12L/H Wet Film Window Air Conditioner Industrial Humidifier industrial Wet Membrane Humidifier

FAQ:

Q1. How To Order ?

Step 1 : Send an inquiry
Step 2 : Confirm the operating conditions
Step 3 : product recommendation and quotation
Step 4 : sampling
Step 5 : confirm order details and make a payment
Step 6 : proceed with product preparation upon receipt of payment
Step 7 : shipping

Q2. How To Pay ?

We accept the following payment methods

1. T/T (Bank Transfer)
2. Western Union
3. Paypal

Q3. How Do We Deliver ?

1. We ship products through major carriers like FedEx, UPS, TNT, EMS.
2. Sea shipment service available. (MOQ 1CBM)

Q4. What's The Lead-time ?

Q5. How Long Does It Take To Receive Shipment ?

It depends on where the buyer is located and which service is chosen.

Guidelines delivery times:
1. Priority Express (FedEx, UPS, TNT) : 1 ~ 3 working days
2. Economy (FedEx, UPS, TNT, EMS) : 3 ~ 9 working days

Q6. How To Track The Shipment ?

On the day we dispatch the shipment we will send a shipment notice
which includes the tracking number.

Q7. What Are Our Product Warranty Policies?

We provide a 12 month guarantee.
During the guarantee period we will replace defective goods and/or spare parts at our own expense,
only if the responsibility is solid confirmed as ours after investigation and discussion agreed by both

sides.

Q8. Why Choose Ucloud high pressure water misting Nozzle ?

We've been devoting ourselves to nozzle manufacturing for more than 30 years,
and have been working with top-notch customers from countries including Japan and many in Europe and North America.
We enjoy a good reputation among existing customers for outstanding stability
resulting from strict and consistent quality checks and production controls.
We trust we're fully capable of satisfying your high-end requirements and meeting your high standards.

Q9. How to contact with us ?

Contact Person: Jason Sun

Email: 18669741981@gmail.com
Tel (What's App): 0086-18669741981
Skype: qingdaosjm0319

12L/H Wet Film Window Air Conditioner Industrial Humidifier industrial Wet Membrane Humidifier

12L/H Wet Film Window Air Conditioner Industrial Humidifier industrial Wet Membrane Humidifier

Qingdao HuaYun Fog Technology Co., Ltd is a company that integrated to the development, production, sales and agency to provide the fogging products and also the spray system. Our aim is to make the production process more energy saving and more intelligent. With the concepts Serve in China, Eye On The World, We are engaged to be one of the most valued companies in the spraying products. Our main products ranged as below,

1.) Dry Fog Industrial Humidifier Series

2.) Ultrasonic Industrial Humidifier Series

3.) Ultrasonic Atomization chips

4.) Advanced High Pressure Water Misting System

5.) High Pressure Misting Nozzles

6.) Cntrifugal Humidifier Misting Fans
